Track rollers with profiled outer ring
Track rollers LFR, mounting bolts and studs RC/RE
The track rollers series LFR can be used on round shafts with diameter from 4 mm to 50 mm.
The contact between track roller gothic arch groove profile and shaft is on two points.
This allows the units to carry loads in both axial and radial direction.
The track rollers are available with either shields ZZ or contact seals 2RS.and
outer diameter 52 mm : lubrication hole on inner ring
■Material
Chrome Steel - AISI52100
Stainless Steel- AISI440C
■Sealed Type
Metal Shieds or Nitrile Rubber Seals
Item No.: LFR5301-10ZZ, LFR5301-10-2RS

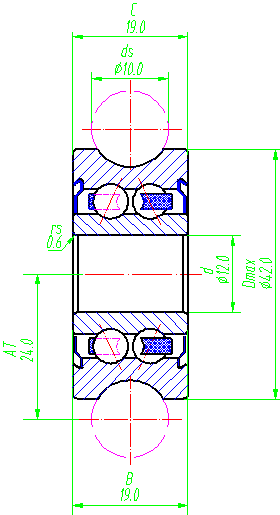

■Track rollers with profiled outer ring LFR5301-10
■d: 12.0mm
■Dmax:42.0mm
■B:19.0mm
■C:19.0mm
■AT:24.0mm
■Da: 38.95mm Rolling contact diameter
■ds: 10mm
■rmin: 0.6mm
■mass: 100 g
■load capacity:
Crw: 13000 N
CorW: 7700N
Fr: 7500N
For:14200N
■ Replaces:LFR5301-10KDD, LFR5301-10NPP,LFR5301-10-2Z
