Inch Miniature Ball Bearings(Open)

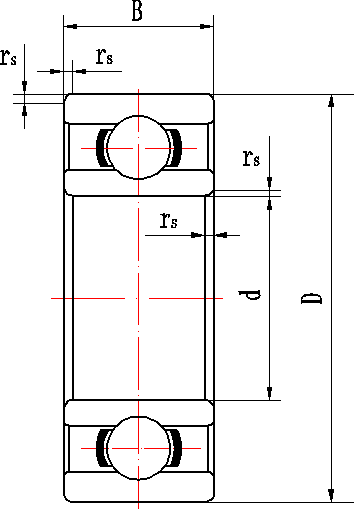

| Bearing Type | Inch miniature ballbearings R2 Section Image | |
|---|---|---|
| Bore Diameter (d) | 3.175mm (0.125") |  |
| Outer Diameter (D) | 9.525mm (0.375") | |
| Min. Radius (rs) | 0.3mm (0.0118") | |
| Width (B) | 3.967mm (0.1562) | |
| Load Rating (Cr) | 631N | |
| Load Rating (Cor) | 219N | |
| Max. Speed (Grease) x 1000 | 56rpm | |
| Max. Speed (Oil) x 1000 | 67rpm | |
| Cage Type | 2-pieces steel ribbon type |
|
| Weight | 1.37 grams | |
| Material | 52100 Chrome Steel 440 Stainless Steel |
|
| Ball Size & Qty | 7×1.588 | |
| Note: Other Item No.:R2,R-2,EE0 | ||
