SG15.2RS, SG15-10.2RS, SG20.2RS, SG25.2RS, SG35.2RS

Track Rollers with Gothic Arch Groove-type SG

The function of series SG rollers is same as the series LFR rollers. Only they are mainly used in the flat track and in the condition required compact structure. After rollers are installed to the slider, the shaft will be not or seldom over the roller's side planes.■Material: Chrome Steel - AISI52100 Stainless Steel- AISI440C ■Sealed Type: Metal Shieds or Nitrile Rubber Seals

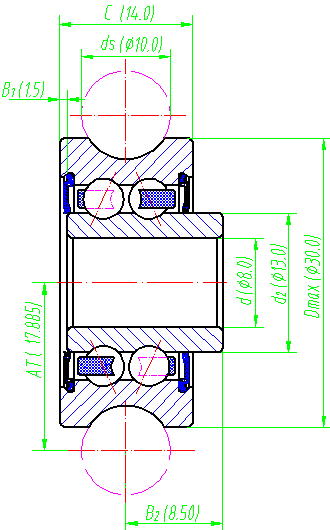

Item No.: SG25, SG25.2RS, SG25-2RS

SG25,SG25-2RS, SG25.2RS
■Track rollers: SG25,SG25-2RS, SG25.2RS
■d: 8.0mm
■ds: 10.0mm
■mass: 49 g
■load capacity:
Crw: 3.67K N
CorW: 2.28KN
Fr: 1.3KN
■ Replaces:
