W1,W1X, W1SSX,W2,W2X, W2SSX,W3,W3X, W3SSX,W4,W4X, W4SSX Guide Wheel Bearings

Double V Guide Wheel Bearings

These components are used in a variety of applications including x-y tables.The type guide wheel bearings are precision ground, double row, angular contact bearings. These bearings are pre-lubricated and available in either 52100 chrome or 440C stainless steel. Although the standard chrome steel version is available either sealed or shielded, the stainless steel design is available sealed only. The concentric and adjustable bushings provide a simple, effective means of adjusting the free play of the guide wheel system.

Item No.: W3,W3X, W3SSX

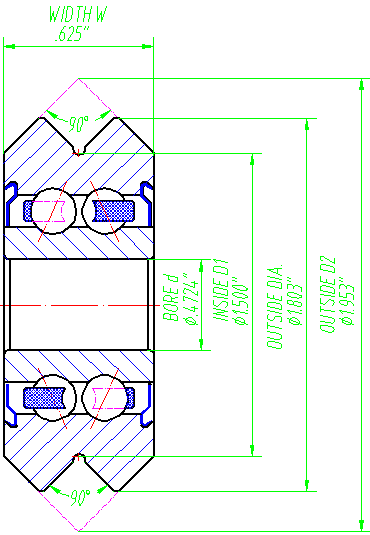

W3,W3X, W3SSX Guide Wheel Bearings
■ Description:Guide Wheel Bearings, W (RM) Track Roller
■ Bore: 0.4724"(12.00mm)
■ Width: 0.625"(15.875mm)
■ Outerside Diameter: 1.803"(45.796mm)
■ Seal Type: Sealed or Shield,
■ Application: Aerospace and Defense,Medical Equipment,Semiconductor Equipment,Food and Packaging Equipment etc.
■ Replaces:RM3-2Z, RM3-2RS
