Metric miniature ball bearings with flanged outer ring(Shield)

F623ZZ Specifications

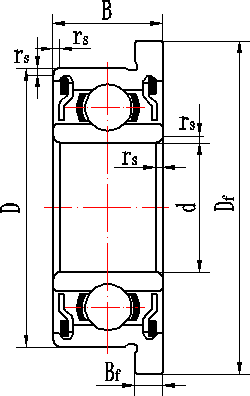

Bearing Type Miniture bearings with flanged outer ring F623ZZ      Section Image
Bore Diameter (d) 3.0mm miniature bearings F623ZZ
Outer Diameter (D) 10.0mm
Flange Diameter (Df) 11.5mm
Min. Radius (rs) 0.15mm
Width (B) 4.0mm
Flange Width (Bf) 1.0mm
Load Rating (Cr) 631N
Load Rating (Cor) 219N
Max. Speed (Grease) x 1000 50rpm
Max. Speed (Oil) x 1000 60rpm
Cage Type 2-pieces steel ribbon type
1-piece nylon crown type
Weight 1.85grams
Material 52100 Chrome Steel
440 Stainless Steel
Ball Size & Qty 7×1.588
Note:1. d2=4.35, 2. D2=7.98 Other Item No.: RF-1030ZZ,FL623ZZA, F623ZZ
